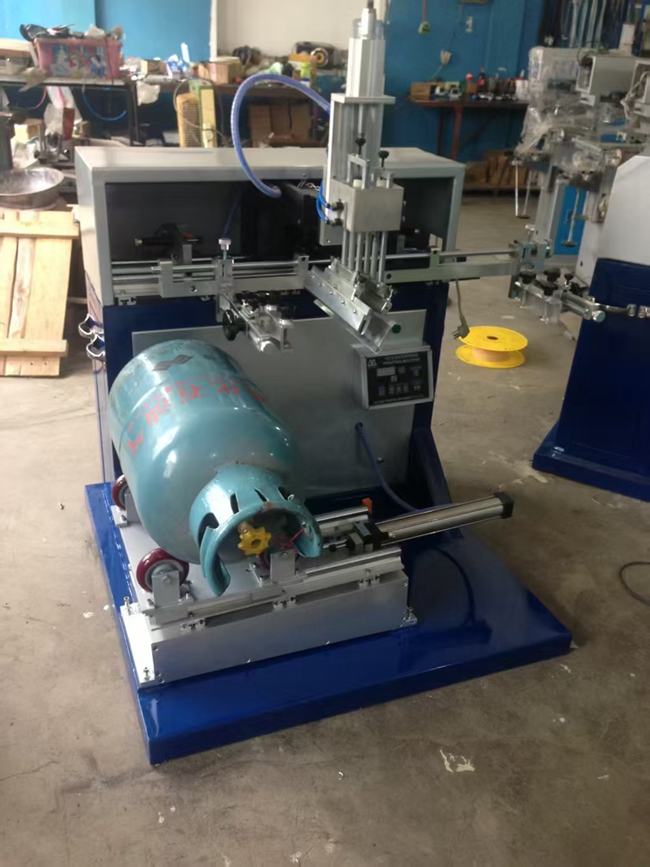

Silk Screen Printing Machine
The cylinder screen printing machine is an automated or semi-automated device specifically designed for high-precision marking and pattern printing on cylindrical metal containers such as welded steel gas cylinders,fire extinguisher and fuel tanks.
Share:
The cylinder screen printing machine is an automated or semi-automated device specifically designed for high-precision marking and pattern printing on cylindrical metal containers such as welded steel gas cylinders,fire extinguisher and fuel tanks. Utilizing screen printing technology combined with precision mechanical transmission and automated control systems, it delivers high-adhesion, eye-catching printing results on curved surfaces.
Model: TX-1100S
Printing Thickness: 330mm*350mm
Max Printing Speed: 500pcs/Hour
Printing Area: 1050mm*350mm
Printing Length: Less than 400mm
Silk Screen Frame: 1200mm*350mm
Power: 220V/50Hz/20W
Pressure: 5bar
Air Consumption: 70L/Min
Gross Weight: 360kg
Package Size: 1980mm*1150mm*1650mm
Model: TX-1100S
Printing Thickness: 330mm*350mm
Max Printing Speed: 500pcs/Hour
Printing Area: 1050mm*350mm
Printing Length: Less than 400mm
Silk Screen Frame: 1200mm*350mm
Power: 220V/50Hz/20W
Pressure: 5bar
Air Consumption: 70L/Min
Gross Weight: 360kg
Package Size: 1980mm*1150mm*1650mm
Key Features:
Microcomputer Control: Fully automated operations with user-friendly controls for easy and convenient use.
Automatic Squeegee & Flooding System: Automated ink scraping, ink return, and worktable lifting ensure consistent print quality while simplifying operation.
Adjustable Printing Stroke & Speed: Customizable settings to meet different printing requirements.
Self-Balancing Squeegee: Ensures even printing pressure for uniform ink application.

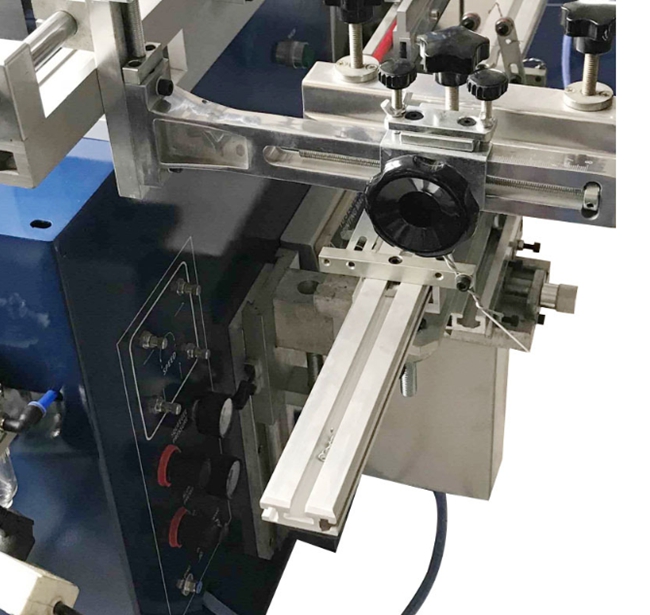

Precision Micro-Adjustment: The worktable and screen frame allow fine-tuning in front-back, left-right, and up-down directions, ensuring high printing accuracy with quick and easy calibration.
Microcomputer Control: Fully automated operations with user-friendly controls for easy and convenient use.
Automatic Squeegee & Flooding System: Automated ink scraping, ink return, and worktable lifting ensure consistent print quality while simplifying operation.
Adjustable Printing Stroke & Speed: Customizable settings to meet different printing requirements.
Self-Balancing Squeegee: Ensures even printing pressure for uniform ink application.
Precision Micro-Adjustment: The worktable and screen frame allow fine-tuning in front-back, left-right, and up-down directions, ensuring high printing accuracy with quick and easy calibration.
Model: TX-1100S
Printing Thickness: 330mm*350mm
Max Printing Speed: 500pcs/Hour
Printing Area: 1050mm*350mm
Printing Length: Less than 400mm
Silk Screen Frame: 1200mm*350mm
Power: 220V/50Hz/20W
Pressure: 5bar
Air Consumption: 70L/Min
Gross Weight: 360kg
Package Size: 1980mm*1150mm*1650mm
Printing Thickness: 330mm*350mm
Max Printing Speed: 500pcs/Hour
Printing Area: 1050mm*350mm
Printing Length: Less than 400mm
Silk Screen Frame: 1200mm*350mm
Power: 220V/50Hz/20W
Pressure: 5bar
Air Consumption: 70L/Min
Gross Weight: 360kg
Package Size: 1980mm*1150mm*1650mm
