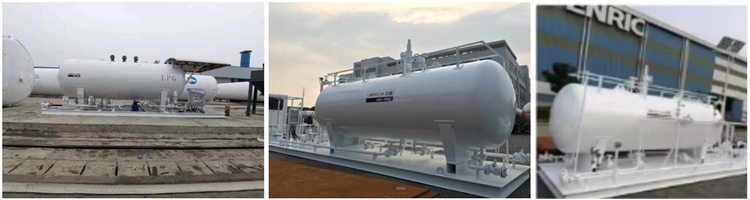

Multiple Size ASME Certified LPG Filling Skid
Multiple Size ASME Certified LPG Filling Skid
Portable LPG skid for cylinder refilling or autogas refueling,with optional functions such as unloading,pressure transmitting,liquid level transmitting and temperature transmitting.
Portable LPG skid for cylinder refilling or autogas refueling,with optional functions such as unloading,pressure transmitting,liquid level transmitting and temperature transmitting.
Share:
Multiple Size ASME Certified LPG Filling Skid
Portable LPG skid for cylinder refilling or autogas refueling,with optional functions such as unloading,pressure transmitting,liquid level transmitting and temperature transmitting.
Tank Design Code: GB/T 150, ASME BPVC, VIII-1/VIII-2
Tank Capacity: 5m³~100m³
Tank Materials: Q345R, SA-516
I. Standard Configuration

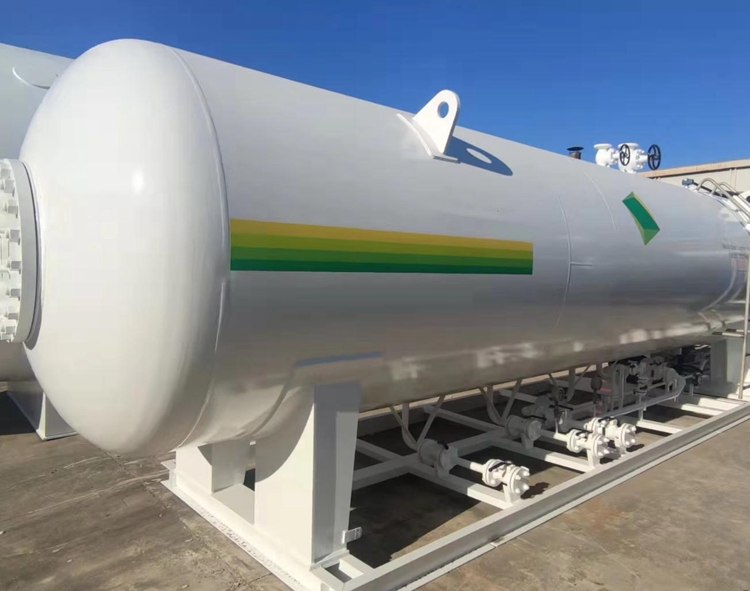

1. LPG Storage Tank
2. Steel Underframe
3. Pipeline System
4. LPG Filling Pump
5. LPG Filling Scale or LPG Dispenser
6. Electrical Control System
7. Sunshield
Compressor, signal transmitter,etc. It can also be provided to realize the functions of loading LPG from the tankers without pump into the LPG filling skid and remotely transmitting signals, etc.
II. Performance Advantages
This product is an integrated equipment for metering civil LPG storage tank (household gas tank). The main equipment adopts integrated skid design, including LPG storage tank, process piping, hydrocarbon pump, LPG filling scale and control carbinet. It has the unloading function for LPG tanker with pump, unloading function for LPG storage tank skid with pump, filling function for LPG cylinder in car, bottling function for civil LPG cylinder, loading function for LPG tanker, function of safe reflux, etc.
III. Advantages
1. High integrity, small occupied land area Standard design, seriation is formed
2. Complete functions, meet various customer requirement
3. PLC control, safe and reliable
4. Short installation time, commissioning inside plant
5. Skid design, convenient for transportation
Technical Specification for LPG Filling Skid
TAKN VOLUME(m³）
10m³, 12m³, 20m³, 25m³, 32m³, 40m³, 50m³, 63m³
Filling Weight (kg)
4035, 4850, 8070, 10090, 12920, 16410, 20180, 25420
Design Pressure （Mpa)1.61
MAWP(Mpa)1.77
Design Temperature (℃）-20℃-50 ℃
Shell /Head Thickness (mm)
10mm/10mm
10mm/10mm
12mm/13mm
12mm/13mm
12mm/13mm
13mm/14mm
13mm/14mm
13mm/
14mm
Tank Material: Q345R
Processing pipe material: 20#
Application
1. Scale for bottling cylinder

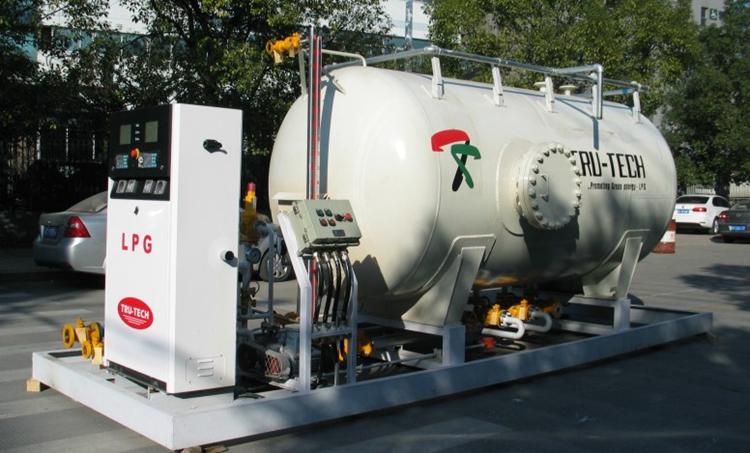

2. LPG dispenser for fueling car
3. LPG pump or compressor for truck
Accessories:
Including pressure gauge, thermometer, float level gauge, ball valves, safety valves, safety return valves, check valves, filter, globe valves, processing pipes, explosion-proof light, alarm and gas leakage detection system, explosion-proof cabinet for lighting and power distribution etc.
Shipment method:
Volume above 20m³ will be shipped by bulk vessel , below 20m³ will be shipped by container vessel

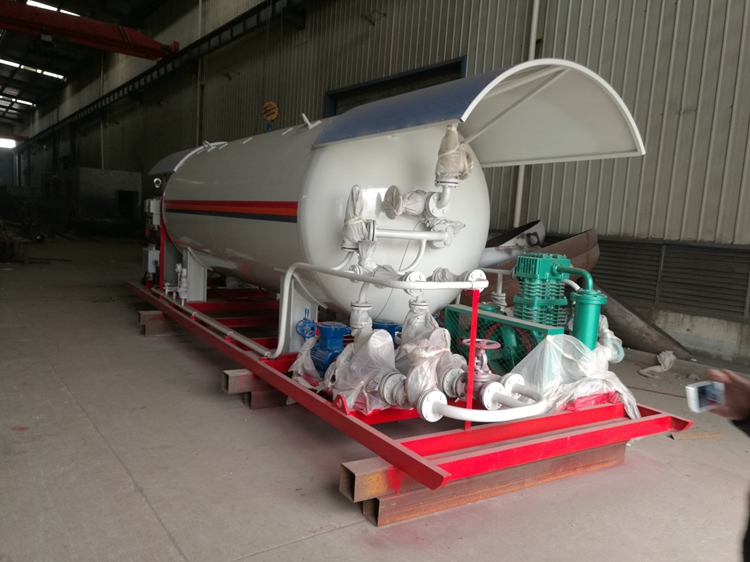

Pump
Flow: 5m³/h
Lift: 150m
Power: 7.5kw
Scale
For bottling LPG cylinders

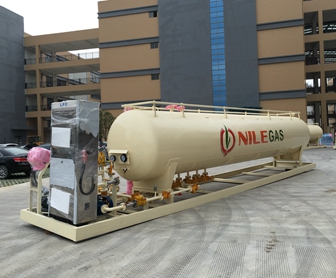

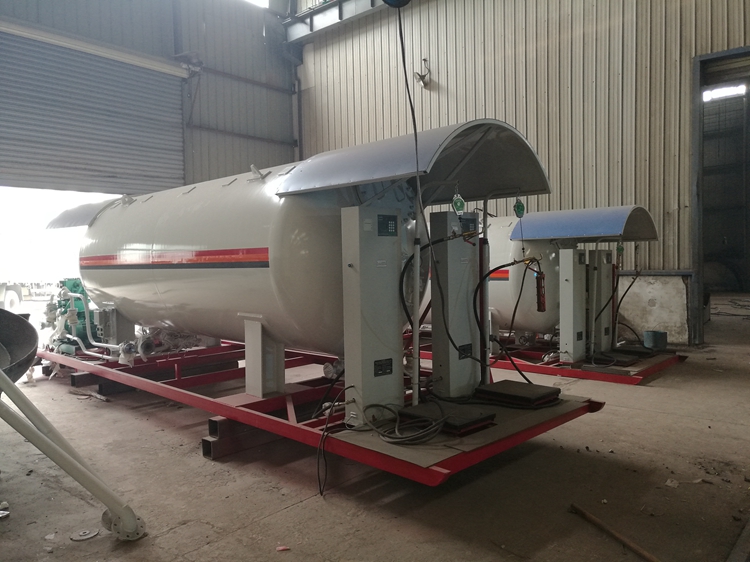

Dispenser
For fueling cars
Portable LPG skid for cylinder refilling or autogas refueling,with optional functions such as unloading,pressure transmitting,liquid level transmitting and temperature transmitting.
Tank Design Code: GB/T 150, ASME BPVC, VIII-1/VIII-2
Tank Capacity: 5m³~100m³
Tank Materials: Q345R, SA-516
I. Standard Configuration
1. LPG Storage Tank
2. Steel Underframe
3. Pipeline System
4. LPG Filling Pump
5. LPG Filling Scale or LPG Dispenser
6. Electrical Control System
7. Sunshield
Compressor, signal transmitter,etc. It can also be provided to realize the functions of loading LPG from the tankers without pump into the LPG filling skid and remotely transmitting signals, etc.
II. Performance Advantages
This product is an integrated equipment for metering civil LPG storage tank (household gas tank). The main equipment adopts integrated skid design, including LPG storage tank, process piping, hydrocarbon pump, LPG filling scale and control carbinet. It has the unloading function for LPG tanker with pump, unloading function for LPG storage tank skid with pump, filling function for LPG cylinder in car, bottling function for civil LPG cylinder, loading function for LPG tanker, function of safe reflux, etc.
III. Advantages
1. High integrity, small occupied land area Standard design, seriation is formed
2. Complete functions, meet various customer requirement
3. PLC control, safe and reliable
4. Short installation time, commissioning inside plant
5. Skid design, convenient for transportation
Technical Specification for LPG Filling Skid
TAKN VOLUME(m³）
10m³, 12m³, 20m³, 25m³, 32m³, 40m³, 50m³, 63m³
Filling Weight (kg)
4035, 4850, 8070, 10090, 12920, 16410, 20180, 25420
Design Pressure （Mpa)1.61
MAWP(Mpa)1.77
Design Temperature (℃）-20℃-50 ℃
Shell /Head Thickness (mm)
10mm/10mm
10mm/10mm
12mm/13mm
12mm/13mm
12mm/13mm
13mm/14mm
13mm/14mm
13mm/
14mm
Tank Material: Q345R
Processing pipe material: 20#
Application
1. Scale for bottling cylinder
2. LPG dispenser for fueling car
3. LPG pump or compressor for truck
Accessories:
Including pressure gauge, thermometer, float level gauge, ball valves, safety valves, safety return valves, check valves, filter, globe valves, processing pipes, explosion-proof light, alarm and gas leakage detection system, explosion-proof cabinet for lighting and power distribution etc.
Shipment method:
Volume above 20m³ will be shipped by bulk vessel , below 20m³ will be shipped by container vessel
Pump
Flow: 5m³/h
Lift: 150m
Power: 7.5kw
Scale
For bottling LPG cylinders
Dispenser
For fueling cars
Solution A

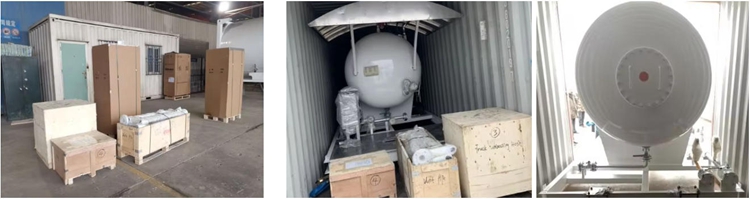

For the LPG filling skid which capacity is 20m³ and below 20m³ and only basic functions are required, CIMC Hongtu provides a solution that enables the LPG filling skid loaded into container and then transported. Such solution can help customers save cost in freight and meanwhile both basic function and safety reliability of the LPG filling skid are guaranteed.
Solution B
For the LPG filling skid which capacity is 20m³ and below 20m³ and only basic functions are required, CIMC Hongtu provides a solution that enables the LPG filling skid loaded into container and then transported. Such solution can help customers save cost in freight and meanwhile both basic function and safety reliability of the LPG filling skid are guaranteed.
Solution B
For the LPG filling skid which capacity is higher than 20m³ or more functions are required, bulk vessel will be adopted to transport the LPG filling skid. Comparing with the solution A, although freight cost is increased for solution B, adding of more functions can bring economic benifits to customers, such as loading LPG from tankers into the storage tank of LPG filling skid, remote transmission of signals, larger capacity, etc.
Technical Specification for LPG Filling Skid
TAKN VOLUME(m³）
10m³, 12m³, 20m³, 25m³, 32m³, 40m³, 50m³, 63m³
Filling Weight (kg)
4035, 4850, 8070, 10090, 12920, 16410, 20180, 25420
Design Pressure （Mpa)1.61
MAWP(Mpa)1.77
Design Temperature (℃）-20℃-50 ℃
TAKN VOLUME(m³）
10m³, 12m³, 20m³, 25m³, 32m³, 40m³, 50m³, 63m³
Filling Weight (kg)
4035, 4850, 8070, 10090, 12920, 16410, 20180, 25420
Design Pressure （Mpa)1.61
MAWP(Mpa)1.77
Design Temperature (℃）-20℃-50 ℃
ASME,GB
