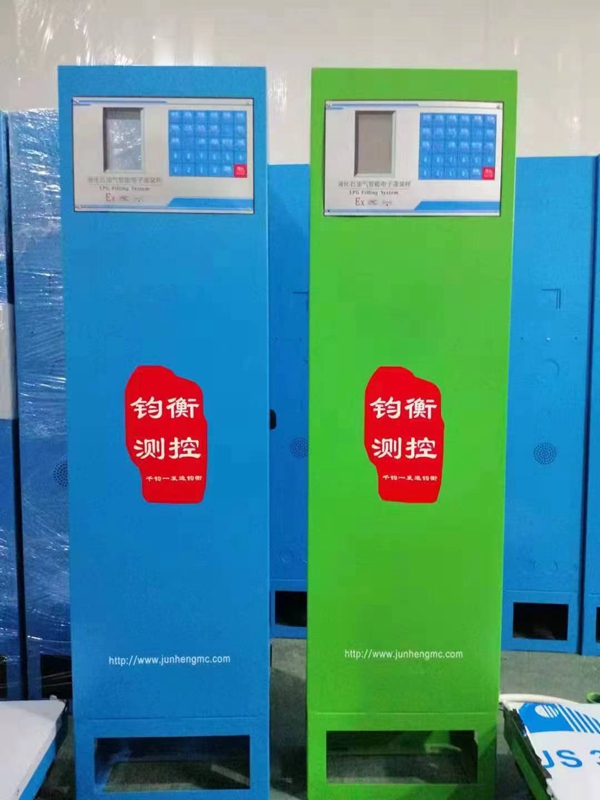

Liquefied Petroleum Gas Filling Scale

Performance indicators for the lpg gas filling scale,small lpg gas bottle filling equipment, cooking gas tank filling device.

Working conditions for the lpg gas filling scale,small lpg gas bottle filling equipment,cooking gas tank filling device.

High Precision
(1)24-bit ADC with filling deviation less than 0.05kg
(2)automatic null position tracking,automatic elimination of the side-effect of gun weight and hose torque to filling acuracy
(3)automatic recognition of gas pressure,automatic adjustment to small valve with set volume
(4)double-valve control technology guarantees simultaneous and speedy filling with both big & small valves at the early stage and small valve filling at the later stage

High Secruity
(1)automatic recognition of gas bottle type to avoid false filling
(2)automatic protection for excess filling with max and min volume setting mode
(3)automatic protection for gas leakage(optional)
(4)back-up circuit(optional)

Easy Operation
(1)automatic response to empty bottle on the balance,automatic filling with valve opening and alarm for excess filling

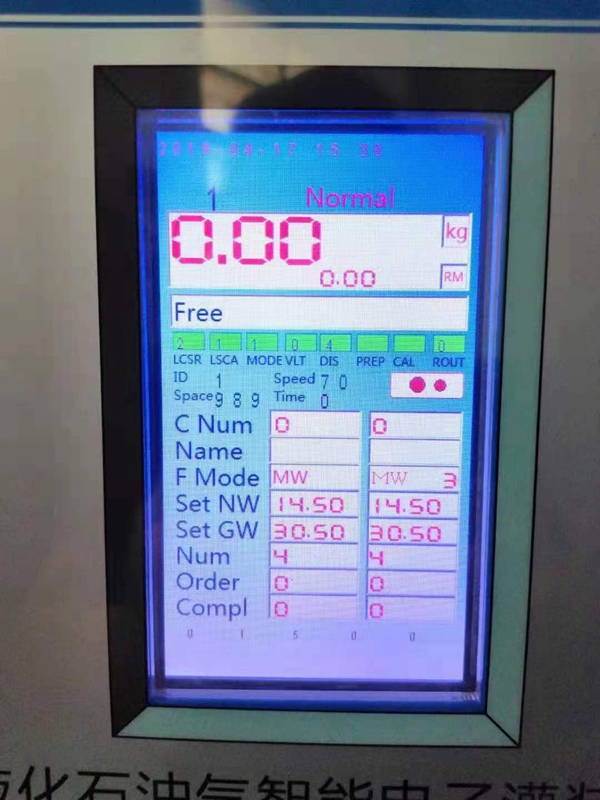

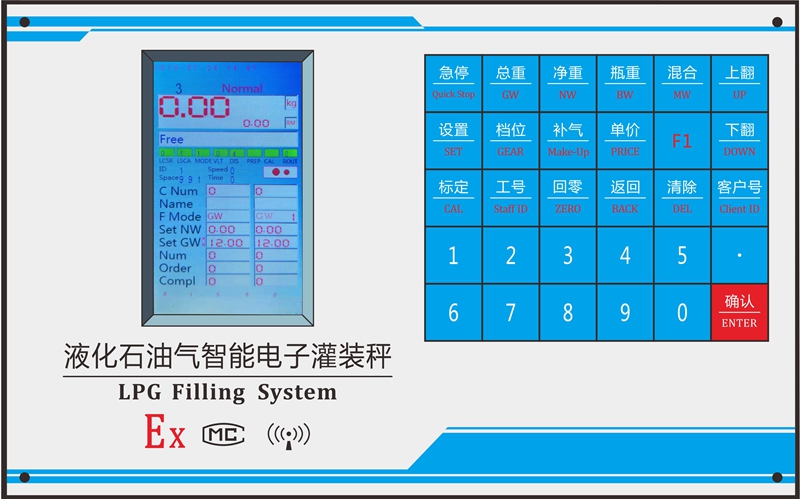

(2)emulational voice system and English operation interface with LC screen
(3)easy keyboard operation with "up"or "down"or"enter" for filling process
(4)customer information card recognition system(optional)

Extensional Functions
(1)with interface to Bar Code Scanner,and can be upgraded to bottle management system
(2)with interface to Customer Information Card recognition
(3)with interface to IC Card recognition
(4)with interface to printer
(5)voice recognition & control interface
(6)message interface

Anti-Cheating
(1)automatic alarm system for any cheating during the filling process
(2)strict filling to billing volume,bottle type and other customer information
(3)optional staff & administrator modes for electronic scale
(4)automatic saving and recording for filling process

Data Managemnt
(1)filling data management
(2)sale data management
(3)purchase data management
(4)stock data management
