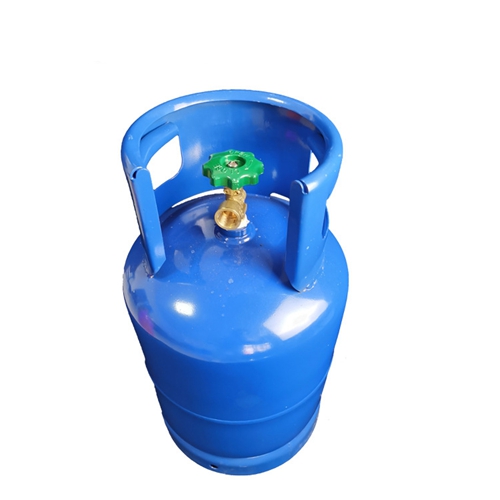

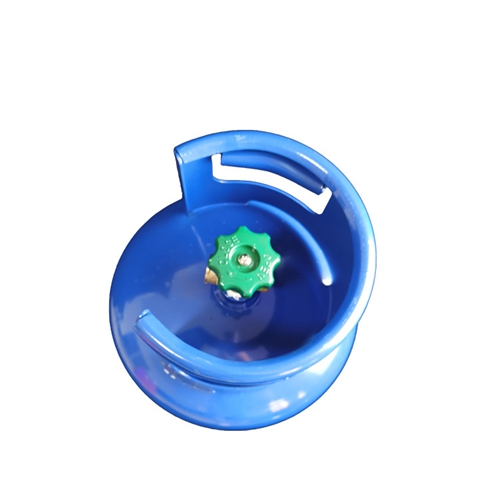

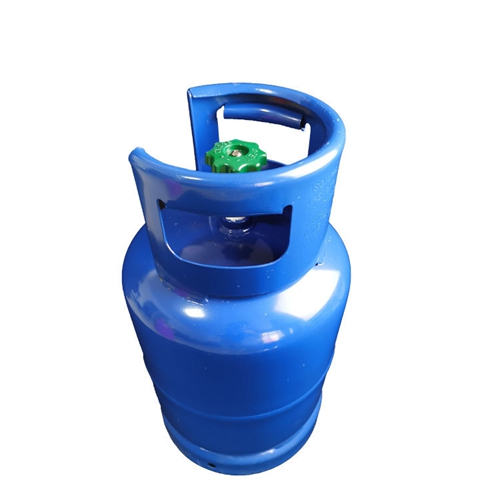

9KG Domestic LPG Cylinder Fitted with Self-Closing Valve with Safety Relief

This is the size used for home gas cylinder product range,it is popular in Zimbabwe market,LPG gas cylinder sizes shown are approximate,actual dimensions may vary,the product color can be blue, orange and red, as well as the colors you want.
Share:
 9KG Domestic LPG Cylinder Fitted with Self-Closing Valve with Safety Relief

We offer a wide range of Empty LPG Cylinders to our clients.

Our product range finds application in residential and commercial purposes.

All the cylinders are manufactured in strict compliance with the industry norms, hence are safe to use.

Moreover, we offer these in various standard water and gas capacities.

Product details:

∗ Capacity:9 Kg
∗ Water capacity:21.6 Liters
∗ Total height:501 mm
∗ Inside diameter of cylinder:314 mm
∗ Outside diameter of footring:240 mm
∗ Outside diameter of collar:190 mm
∗ Foot ring height:48 mm
∗ Shroud height:150 mm
∗ Norminal wall thickness:2.5 mm
∗ Steel material:HP295
∗ Test pressure:3.2 MPa
∗ Work pressure:2.1 MPa
∗ LPG Cylinder Fitted with F-type Valve
∗ Design Specification:EN 1442,ISO4706
∗ Construction:Two-piece
∗ Minimum Order Quantity:1540 Pieces


Safety features:

♦ ISO 4706 approval for Cylinder
♦ Approved by Government of China's Explosives department
♦ Periodic testing of Cylinders
♦ Mention of tare weight on Cylinder
♦ Mention of Batch and Serial No
