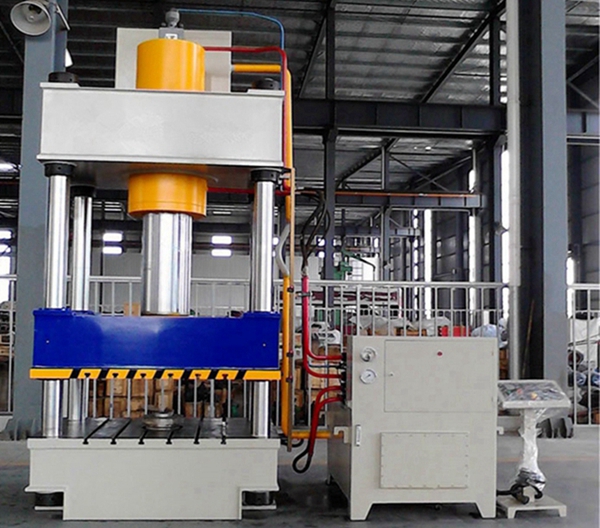

400Ton Hydraulic Press

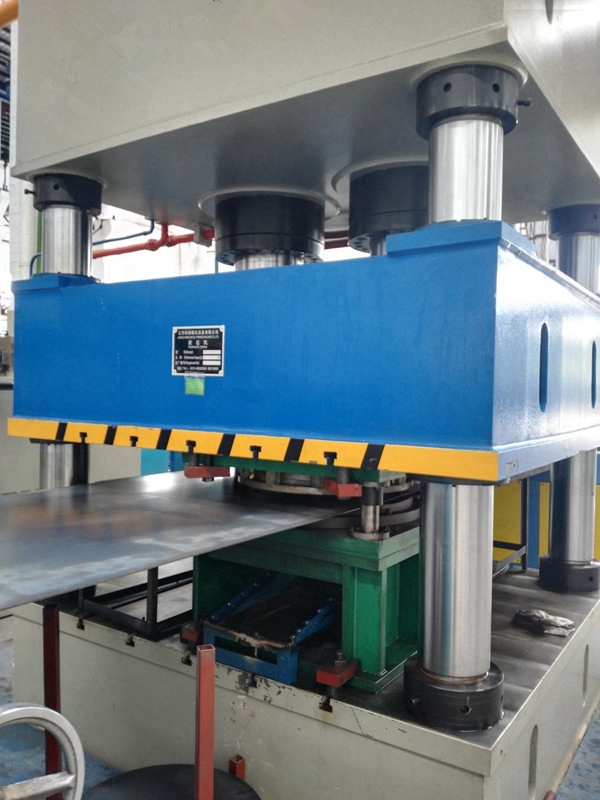

400Ton Hydraulic press,steel LPG cylinder manufacturing equipment, for cylindrical deep drawing, guard ring round bending & forming machine.
Main features:
1. Widely used in deep drawing,flange,bending,press
2. Computer optimized structure, all steel welded frame, easing internal stress, with high rigidity and stability
3. This product is widely used in hydraulic systems, reliable, durable, and has less hydraulic impact
4. Independent electrical control system, reliable, audio-visual, and easy to maintain
5. Button centralized control: adjustment, semi-automatic
6. Operation panel: Continuous stroke and pressure, with pressure control and time delay function
7. The stroke and pressure can be adjusted according to actual use
1.Adopting computer optimized structural design, it is a fully welded steel plate frame structure. And after wall tempering treatment, the accuracy is well maintained.
2.The hydraulic control system adopts a plug-in valve integrated system, which has reliable operation, large flow rate, small internal leakage, long service life, highly integrated system, and reduces the connection of pipelines and leakage points.
4.The four corner eight sided guide rail has high guiding accuracy, strong anti bias load capacity, and adopts centralized lubrication.
5.New oil cylinder sealing components with high reliability and long lifespan.
6.The slider runs fast and has high work efficiency.
7.The working pressure of the slider, as well as the range of travel for fast descent and slow progress under no load, can be adjusted according to process requirements.
8.There is a hydraulic pad under the workbench pad, and there are sufficient top rod holes on the workbench pad. The working range of the hydraulic pad is divided into three types: stretching, pushing out, and not pushing out.
Rated Pressure: 4000 KN
Knock-Out Pressure: 630 KN
Max Hydraulic Pressure: 25Mpa
Stroke of Slide: 800MM
Stroke of Knock-Out Cylinder: 300MM
Distance between Down-Flat of Slide and Work Table: 1250MM
Speed of Slide of Empty Downlink: 100MM'S
Speed of Slide of Pressing: 5-7MM'S
Speed of Slide of Return: 45MM'S
Table of Effective Area: L-R 1240mm; F-B 1200mm
Overall Dimension of Machine: F-B 3235MM
Height Above Ground: 4500MM
Power: 22KW
