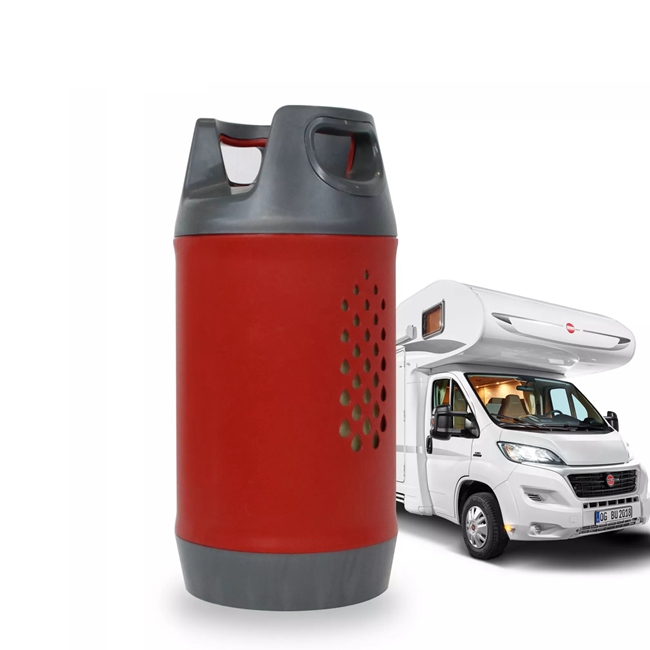

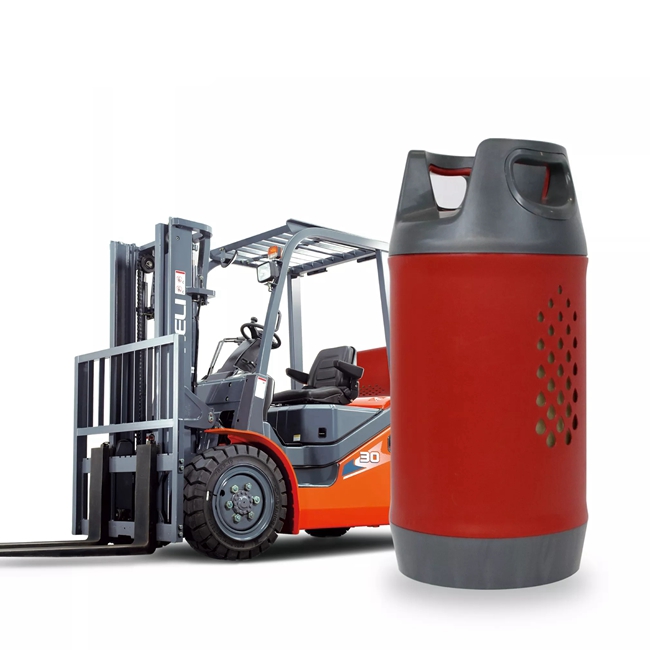

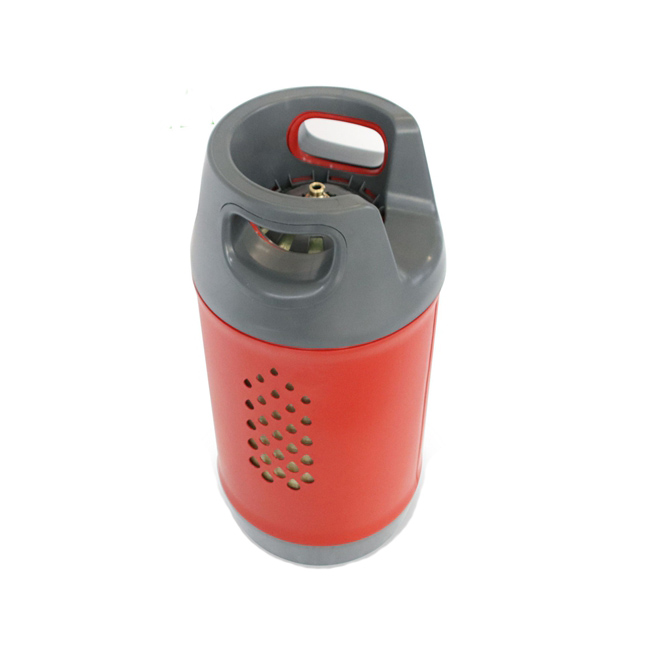

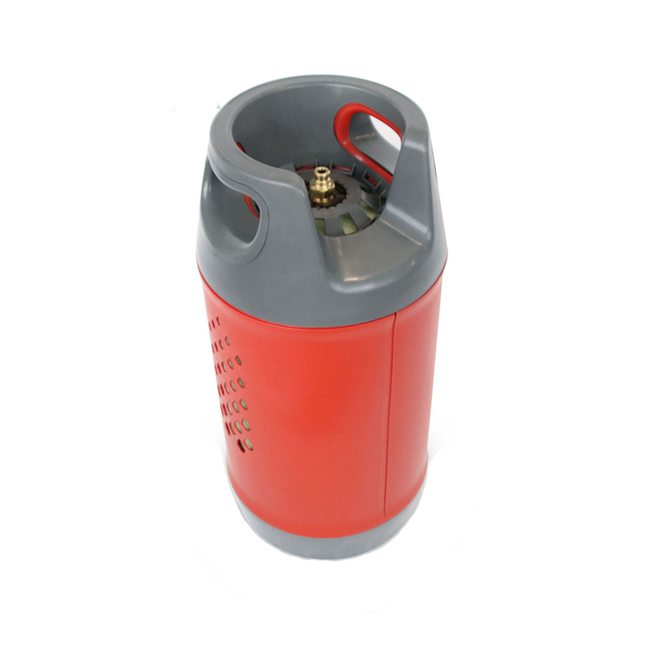

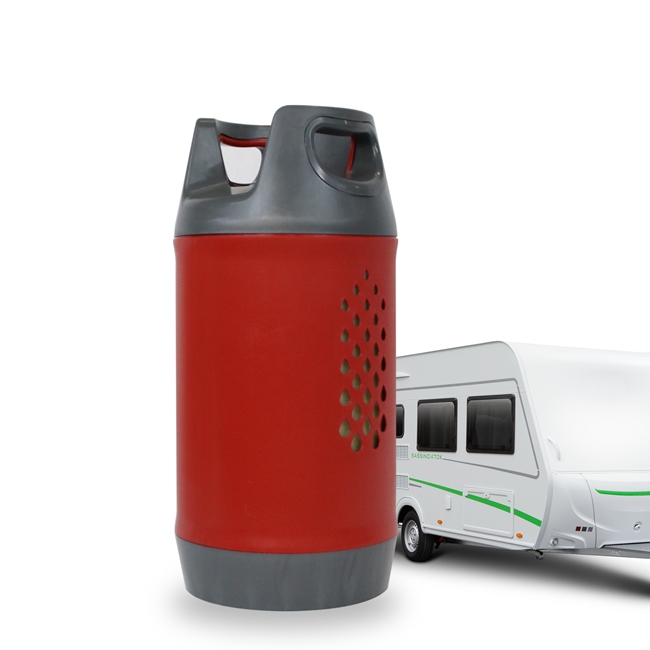

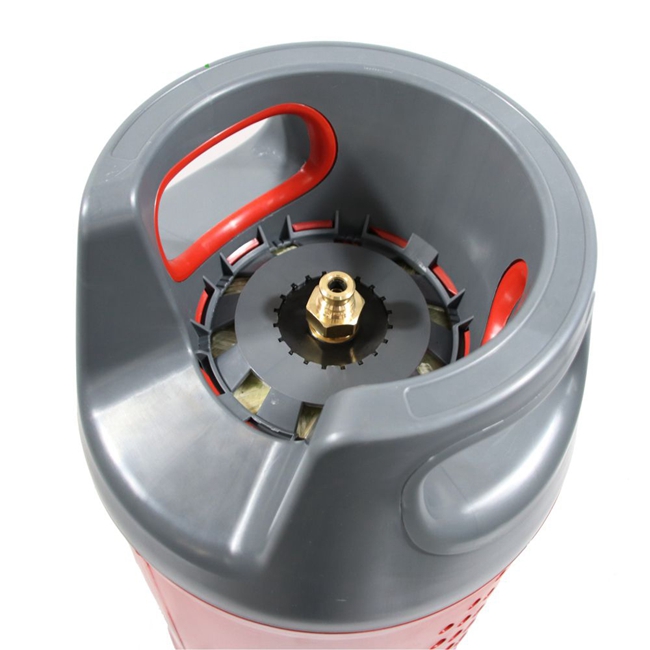

12.5kg Composite LPG Cylinder

12.5kg portable new material HDPE wrapped fiberglass composite plastic LPG gas cylinder
Share:
12.5kg Composite LPG Cylinder
Description:
1.The inner liner is a non-load bearing LPG container with a certain rigidity,and can be used as a mold for filament winding.It is required that the wall thickness of inner should be controlled evenly, impact toughness resistance,and no creep failure or stress cracking during the service life.Good air tightness, corrosion resistance and high temperature resistance.
2.EN12245 standard 10kg composite LPG cylinder,fiberglass reinforcement gas cylinder, plastic composite lpg cylinder,corrosion resistance, impact resistance, high strength, high toughness, weather resistance, high temperature resistance, flame retardant and other characteristics.
3.The inner liner is a non-load bearing LPG container with a certain rigidity,and can be used as a mold for filament winding.
4.It is required that the wall thickness of inner should be controlled evenly, impact toughness resistance,and no creep failure or stress cracking during the service life.Good air tightness, corrosion resistance and high temperature resistance.

Technology specification:

Water capacity: 30.5L
Propane capacity:12.5kg
Butane capacity:14.9kg
Total height: 680 mm
Internal diameter:307mm
Service pressure (working pressure) 20bar
Design pressure (test pressure) 30bar
Mateiral: HDPE+Glass fiber
Standard: ISO11119-3 / EN12245
MOQ:1000pcs


Portable new material HDPE wrapped fiberglass composite plastic LPG gas cylinder
Features:
1.Anti-rust
2.Anti-corrosion
3.Pressure reach 70 kg
4.Transparent cylinder bottle body
5.No explosion in high temperature
6.Lightweight 8kg
7.Service life is 15 years guaranteed
8.Enterprise self-inspection,no need supervise from the third party

Benefits of composite LPG cylinders:
1.Light weight
2.Transparency
3.Hight quality
4.Explosion safe
5.Corrosion free and ultra-violet radiation proof
6.Explosion-proof under fire exposure and impact load
7. Transportation costs will be lowered due to the reduced weight
8.An even tare weight removes the need to adjust the filling machines for each cylinder,thereby saving man hours
The ultimate goal is to produce a high quality,"safety first" factory and products that are approved by international government agencies for containment and transportation of LPG.


Quick Details
Pressure: High
Place of Origin: Anhui, China
Model Number: as custumer demand
Material: Composite Material
Brand Name: LD
Use: LPG
Working Pressure: 20bar
Test Pressure: 30bar
Water Capacity: 30.5L
Outside Diameter: 305mm
Length: 680mm
Weight: 7.5KG
Thread: M26
Marerial: HDPE and glass fiber
Cylinder Standard: ISO11119/ EN12245
Filling Media: propane,butane,LPG and so on

DESCRIPTION PARAMETERS
Filling Weight(LPG/KG) 12.5KG
Cylinder Empty Tare Weight(KG) 7.5KG
Water Capacity(L) 30.5L
Height(mm) 680mm
Diameter(mm) 305mm
Working Pressure(bar) 20bar
Test Pressure(bar) 30bar
Hydraulic Burst Pressure(bar) 150bar
