CQB-FA Fluoroplastic Magnetic Pump

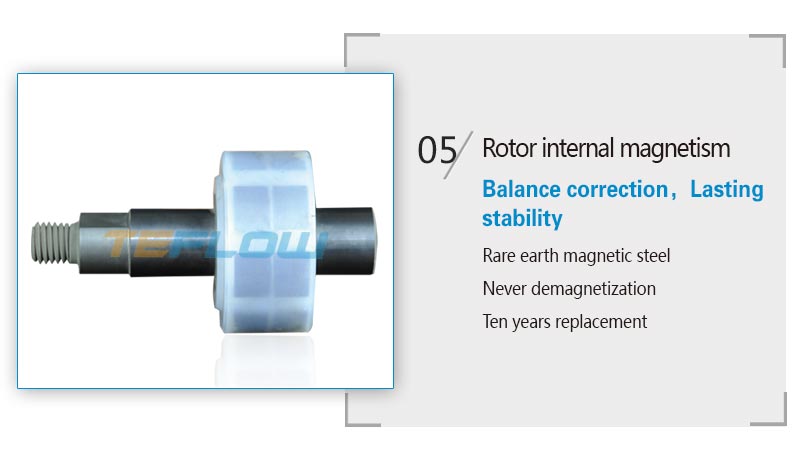

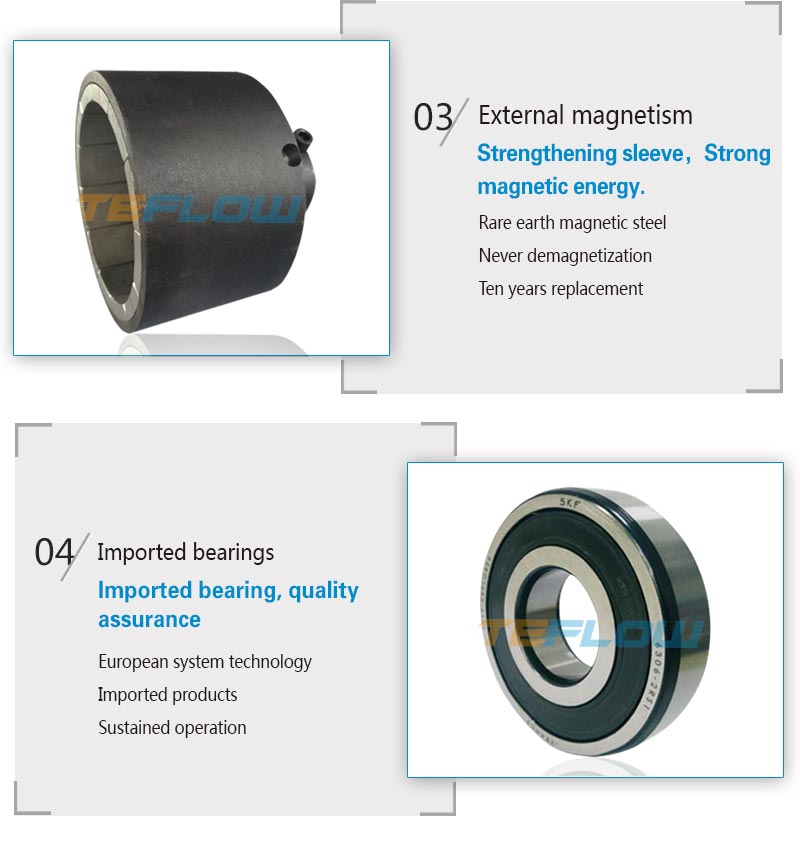

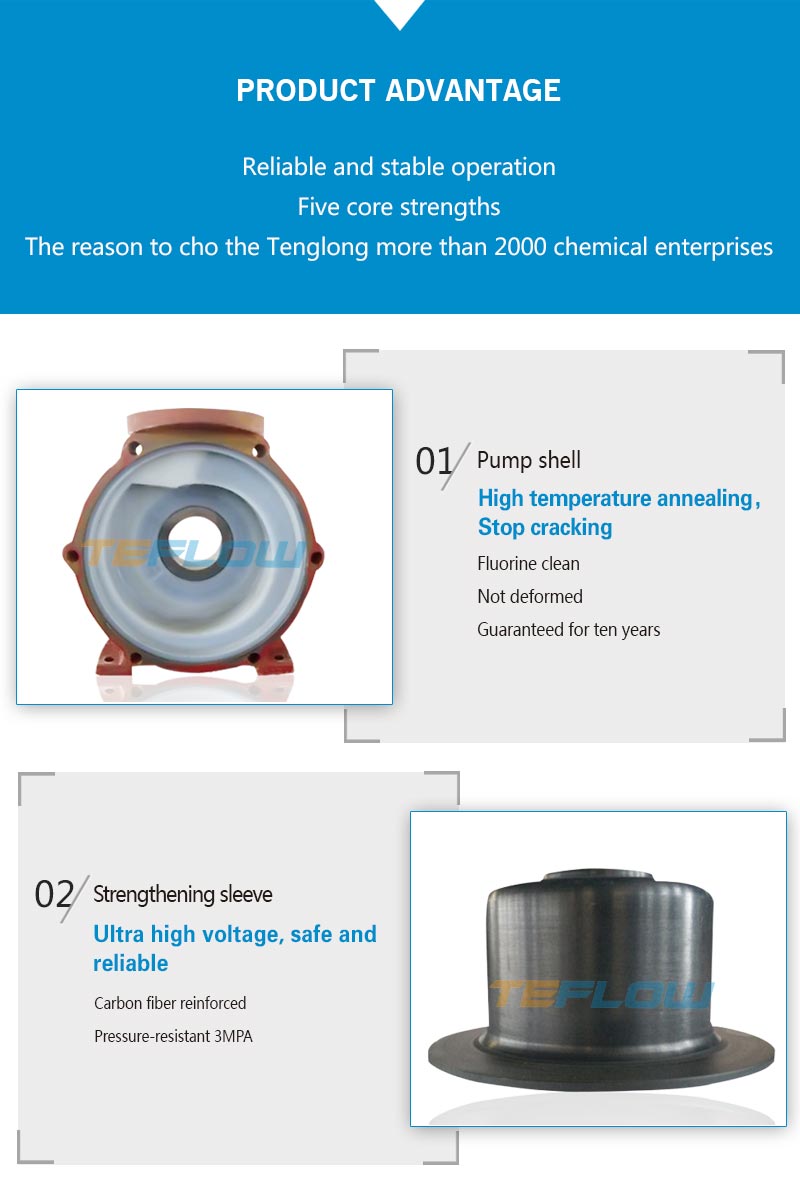

Magnetic Drive Pump is a Static seal pump,composed by Impeller,Rotor,Outer Magnetic,Motor.Outer magnetic rotation by Motor,Magnetic Force through the isolation sleeve,Acting on the inner magnetic rotor Rotating.Inner magnetic steel and impeller assembly without shaft seal,Liquid medium has sealed by isolation sleeve,Make liquid transmission without leakage.
Share:
CQB-FA Fluoroplastic Magnetic Pump

CQB-F Series Fluoroplastic Magnetic Drive Pump

CQB-F Fluorine-Lined Magnetic Pump

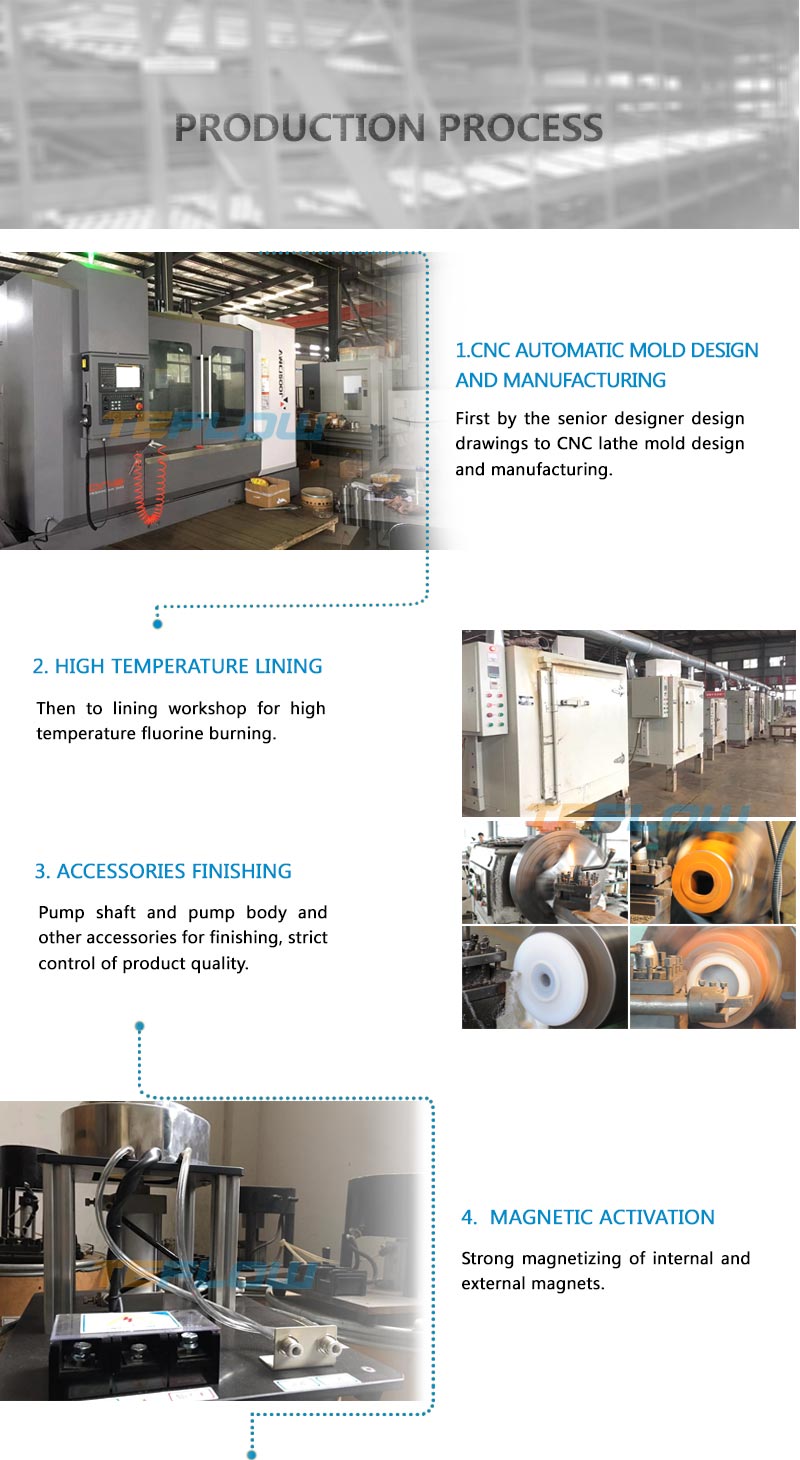

Professional quality,international standards

Overview:

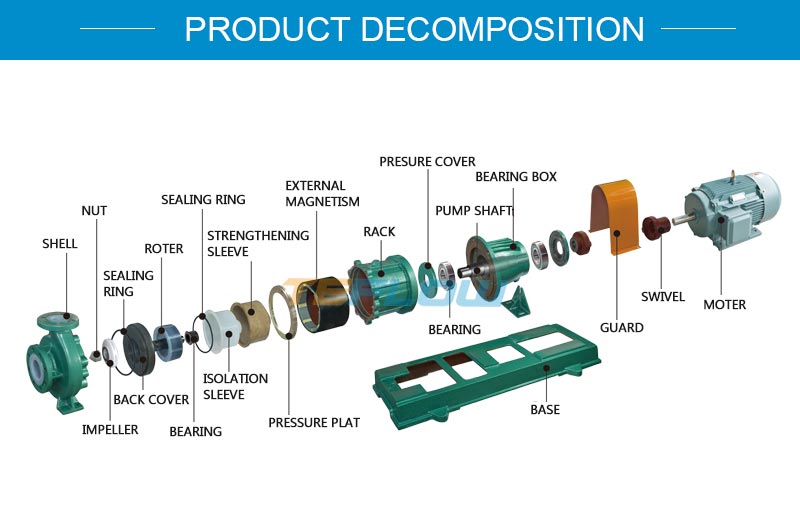

Magnetic Drive Pump is a Static seal pump,composed by Impeller,Rotor,Outer Magnetic,Motor.Outer magnetic rotation by Motor,Magnetic Force through the isolation sleeve,Acting on the inner magnetic rotor Rotating.Inner magnetic steel and impeller assembly without shaft seal,Liquid medium has sealed by isolation sleeve,Make liquid transmission without leakage.

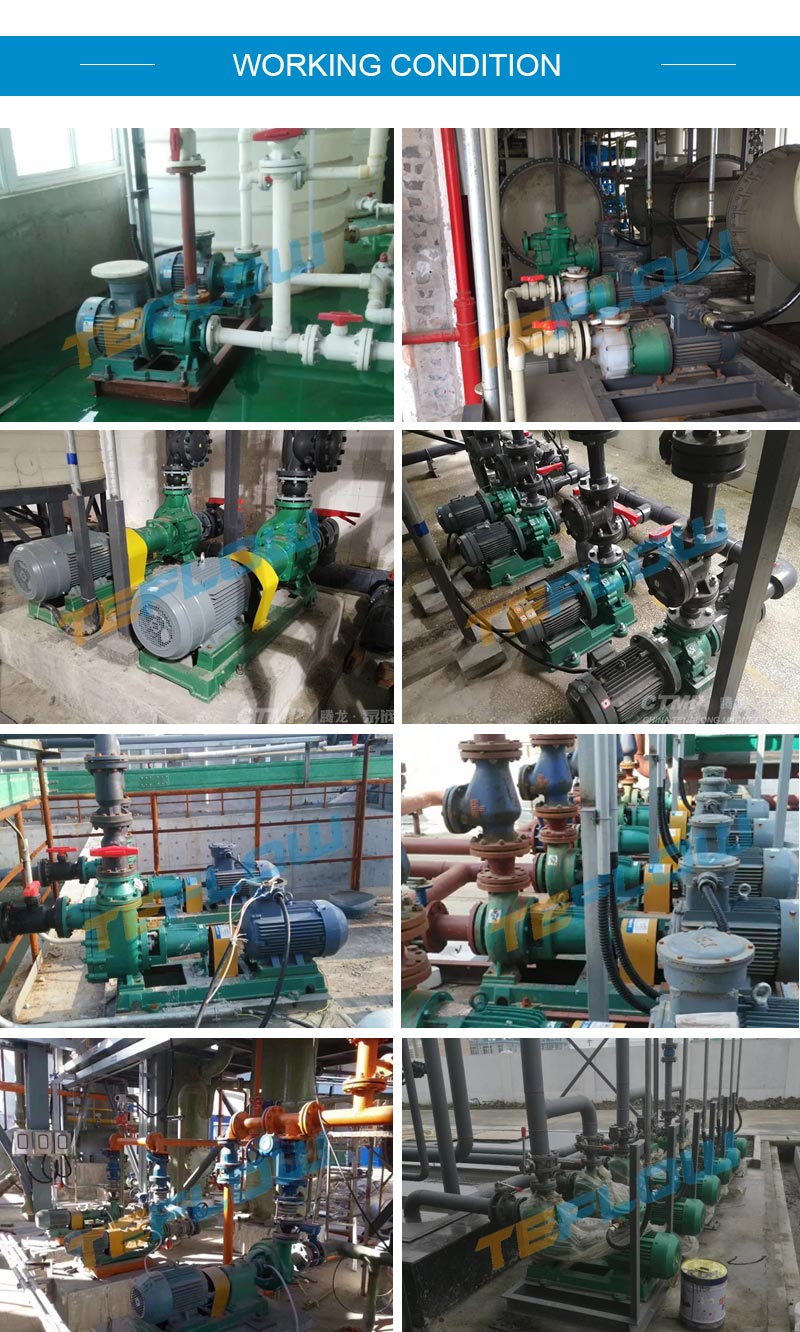

Application:

Suitable for transfer high corrosive liquid,such as: hydrochloric acid,nitric acid,organic solvent.

Installation height calculation:

In selecting the pump in our company,the installation height should be considered.The vertical distance between the suction level and the pump shaft should be less than the installation height specified by the pump.The following formula is used to calculate:

Hsz Ha-Hv-Δ Hs-(NPSH)r

Hsz-Fixed installation height (m)

Ha-Atmospheric pressure head on site

Hv-Vaporization pressure head of liquid temperature (m)

NPSH-cavitation allowance specified on the performance parameter table(m)

Δ Hs Suction pipe loss head (m)

NPSH-cavitation allowance specified on the performance parameter table(m)

Pump shaft power:

Pump power refers to the input power of the pump,is N.

The output power is the effective power transferred by the pump to the liquid as it passes through the pump,is NE.

Ne= Shaft power (W)

p=Liquid density(m3/kg)

g=Gravity acceleration(m/s)

Q=Flow(m3/h)

H=Head(m)

Input power and output power are not equal,because there is a loss of power in the pump,the size of the loss is commonly used to measure the efficiency of the pump.Efficiency is expressed by Ƞ.The efficiency of pump is the ratio of output power to input power.

Ƞ=Ne/N

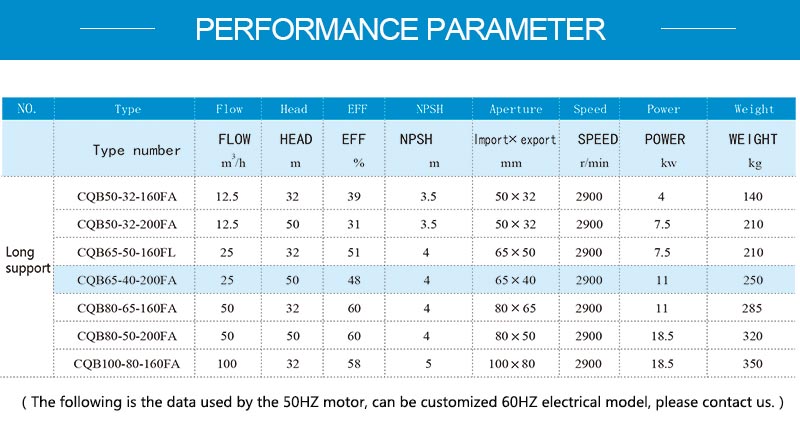

Main parameters:

Flow: 12.5m³/h-100m³/h

Head: 20m-50m(2bar-5bar)

Power: 4kw-18.5kw

Magnetic coupling drive,long support, non direct structure design

Applicable medium: any concentration of acid,alkali,salt,organic solvents, etc.

Transportation of acids and bases and Organic solvents at -20 ℃ -90 ℃.

The configuration can be changed according to the actual working condition.

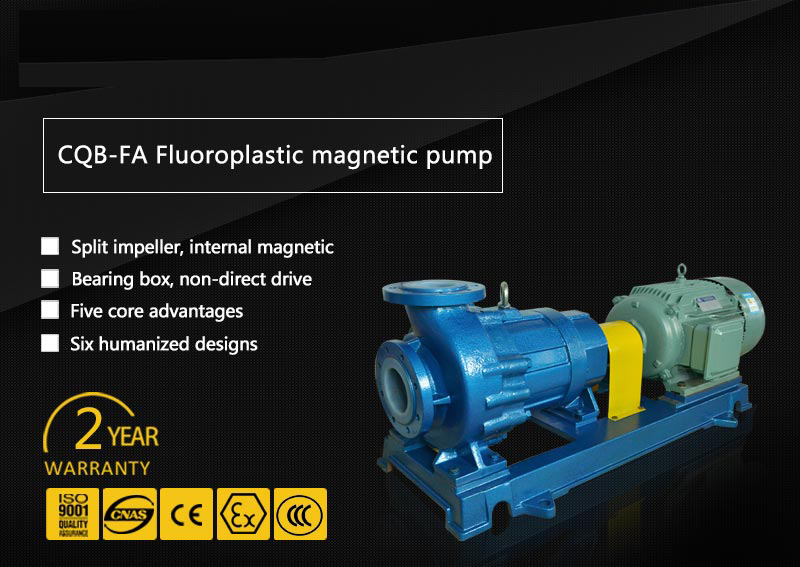

CQB-FA Fluoroplastic Magnetic pump (Non-direct connection)
CQB-FA Fluoroplastic Magnetic pump, the pump overflowing parts are made of fluoro plastic alloy, can transport any concentration of acid and alkali corrosive substances.

Main parameters:
Flow: 12.5m3/h-100m3/h
Head: 20m-50m(2bar-5bar)
Power: 4kw-18.5kw

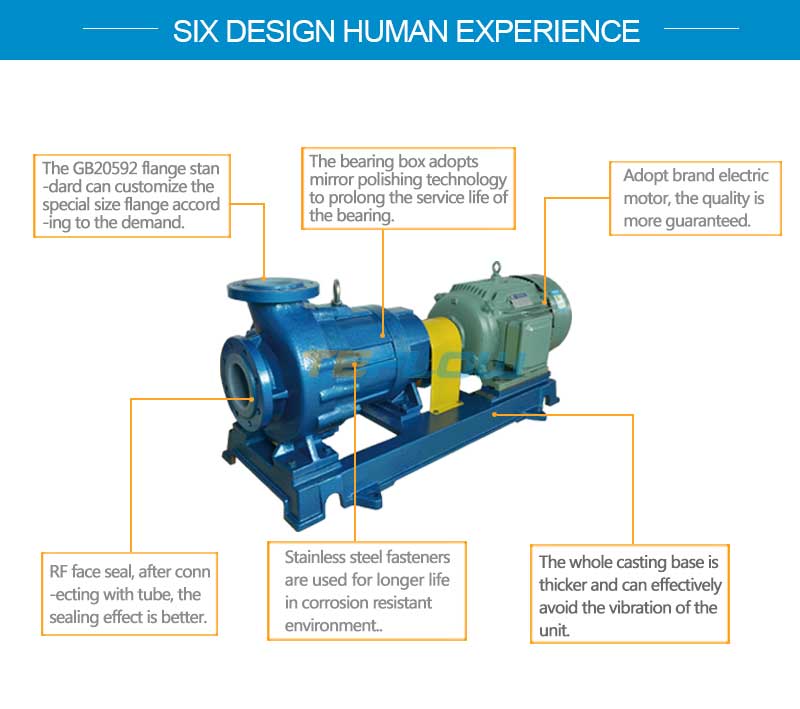

Magnetic coupling drive,long support, non direct structure design
Applicable medium: any concentration of acid,alkali,salt,organic solvents, etc.
Transportation of acids and bases and Organic solvents at -20 ℃ -90 ℃.

The configuration can be changed according to the actual working condition.






Application:
Suitable for transfer high corrosive liquid,such as: hydrochloric acid,nitric acid,organic solvent.

Installation height calculation:
In selecting the pump in our company,the installation height should be considered.The vertical distance between the suction level and the pump shaft should be less than the installation height specified by the pump.
